Model Number

N98PBN

NVR

Video & Audio

Decoding Format

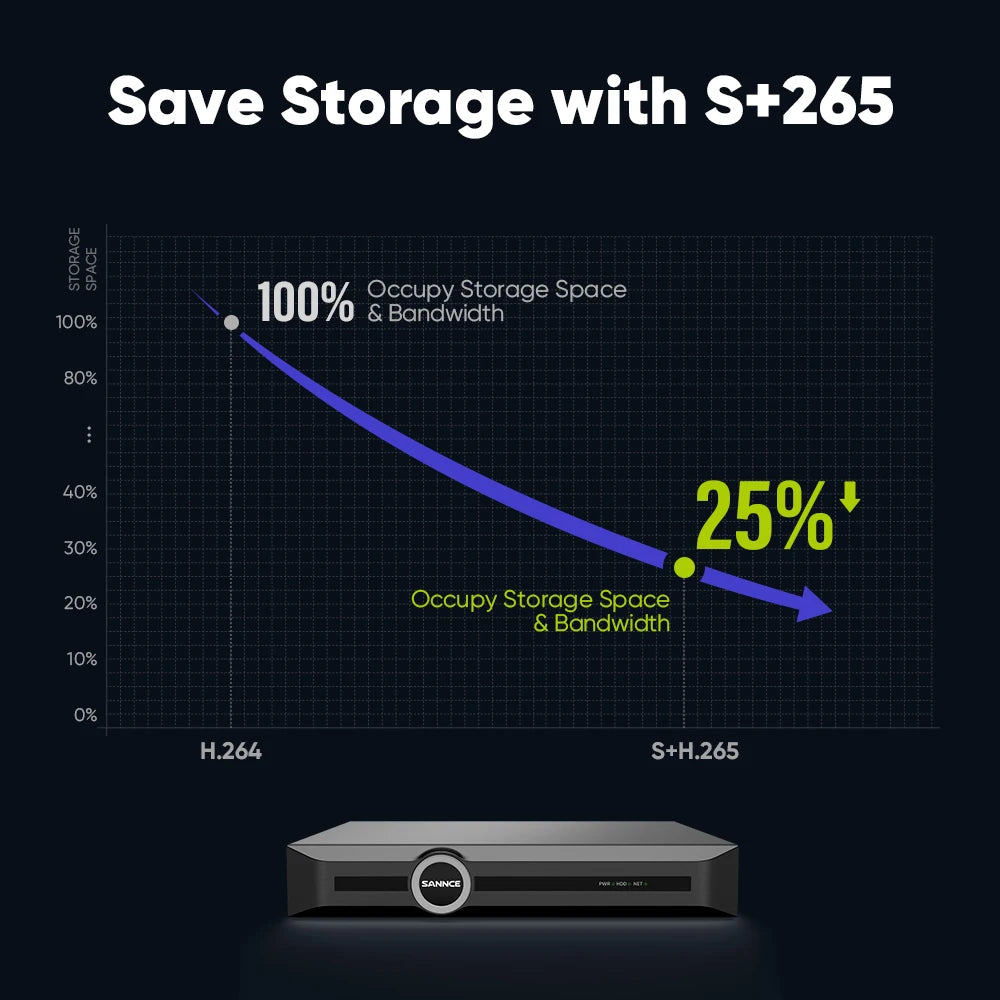

S+265; H.265; S+264; H.264

IP Video Input

8CH PoE

Video Output

HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)

VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz)

Audio

G.711A; G.711U; ADPCM_D

Incoming/outgoing Bandwidth

60/40 Mbps

Max Recording Resolution

8MP(30fps)×1,6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8

Max Playback Resolution

8MP(30fps)×1, 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4

Third-party Camera Access

ONVIF(Profile S/T); RTSP

Record Playback

Multi-channel Playback

4

Record Mode

Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device

Playback Function

Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital
Zoom

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm

Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure

Storage

HDD

1 SATA Interface

HDD Capacity

Up to 8 TB capacity for each HDD

Network

Network Protoco

ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP

Mobile Phone Access

Android; iOS; P2P

System Compatibility

CGI; SDK

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

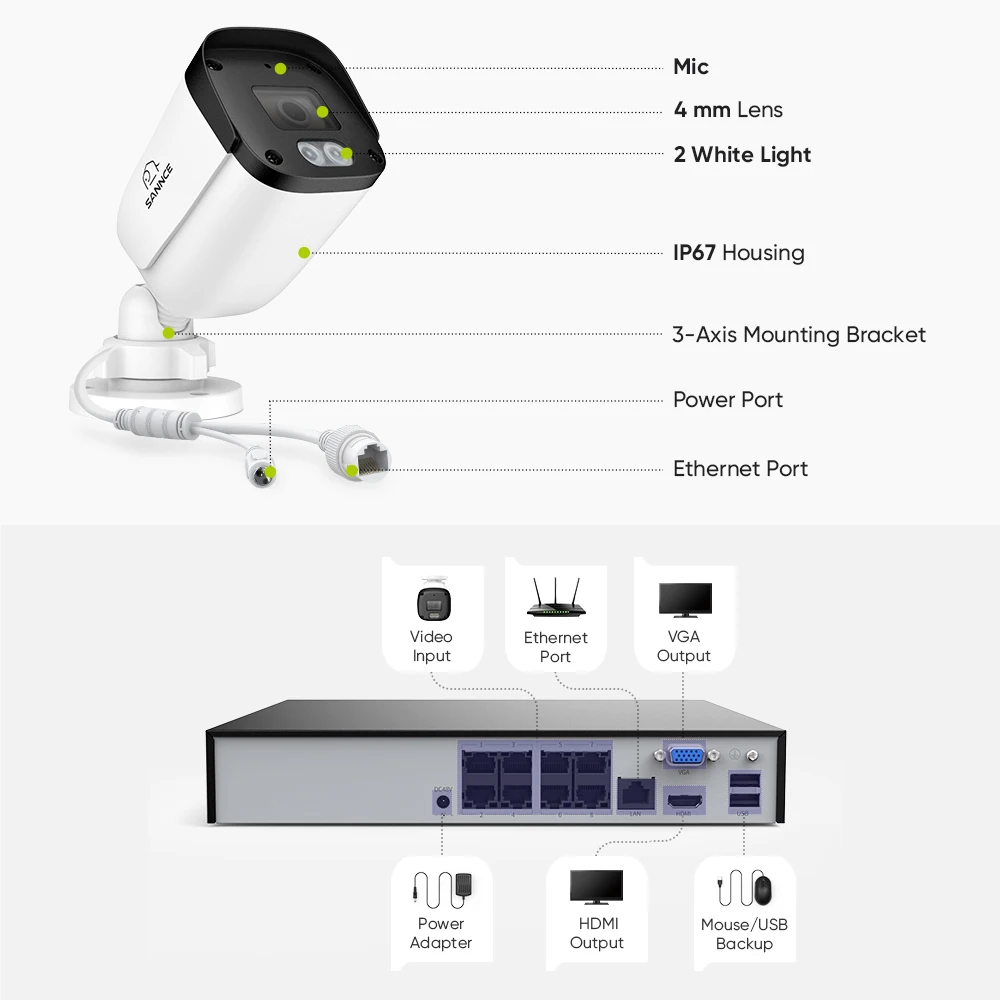

External Port

USB

2×USB2.0

HDMI

1×HDMI(supports up to 4K resolution output)

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE

PoE Interface

8×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

72W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

UI Language

English;German; French;Italian;Spanish

Operating Power

DC48V 1.875A

Power Consumption

<10W(without HDD&without PoE)

Working Temperature

10 °C to 55 °C (14 °F to 131 °F)

Dimensions (W X H X D)

225 mm × 231 mm × 45.1 mm

Weight (Without Hard Disk)

kg

Model Number

I91FW

IP Camera

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Main Stream

50 Hz:20fps（3840x2160）,25fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)
60 Hz:20fps（3840x2160）,30fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720)

Sub-stream

50 Hz: 25fps(704×576, 704×288, 640×360, 352×288)
60 Hz: 30fps(704×480, 704×240, 640×360, 352×240)

Wide Dynamic Range

DWDR

Electron Shutter

1s～1/100000s

Min. Illumination

Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance

Defog

Yes

Privacy Mask

4 black static areas

Number of Infrared LEDs

2 pcs

Supplement Light

Smart Dual Light IR 30m, White light 20m

Lens

focal length

2.8mm Fixed Focal Length Lens

Angle of View

Horizontal FOV 112.1°, vertical FOV 60.4°, diagonal FOV 128.7°

Aperture

F1.6

Lens Mount Types

M12

Interface Performance

Network Port

1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio Port

Built-in MIC (Pickup Distance of 5m)

Extended Protocol

Onvif Profile S/T、CGI

Coding Mode

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bitrate

32Kbps~6Mbps

Audio Compression Algorithm

G.711A/G.711U/ADPCM_D

Audio Sampling Rate

8kHz

Other Functions

IE Access

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

IP Address

Support static and dynamic IP addresses, and custom network cards

Network Protocol

RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast

System Time Clock

NTP Time Calibration, Time Zone Setting, Daylight Saving Time

Remote Administration

Network Remote Upgrade, Parameter Settings, and Configuration Import and Export

Smart Analysis

human & Vehicle Detection

General Functions

Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.

General

Housing

Metal & Plastic

Color

White & Black

Operating Power

PoE (802.3af), Max. 5W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.

Dimension (L X W X H)

6.46" X 2.87" X 2.87"/ 164 X 73 X73mm

Weight

0.66 lb./300g
